Open hook
The solution for flexible handling.
The versatile all-rounder for stable and reliable trellis systems.

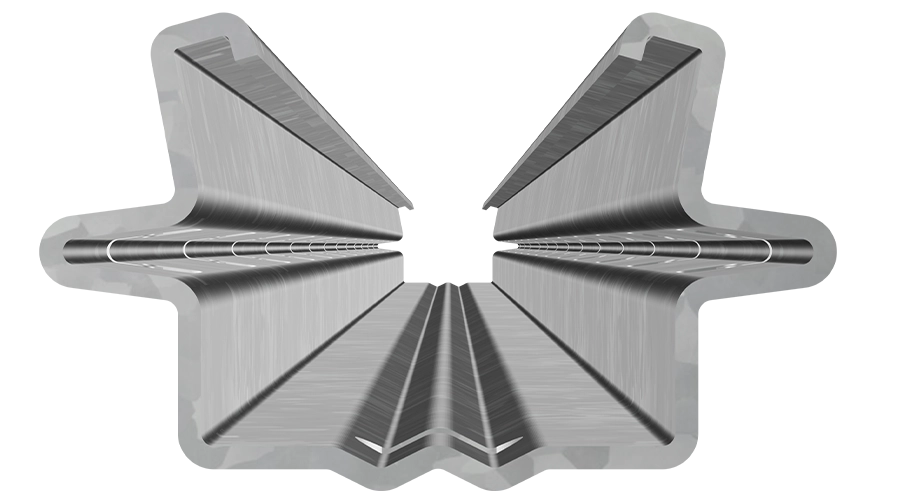

Ihre AnsprechpartnerThe E55 impresses with its balanced profile width and offers high stability and sturdiness in daily use.
The special design ensures pronounced torsional rigidity and makes the pole a reliable solution for a wide range of requirements in viticulture and fruit growing.
Thanks to various internal hook designs, the post can be used flexibly. The sturdy hooks are suitable for fixed and interchangeable wires up to 2.2 mm and ensure secure wire guidance even under heavy loads.
| Dimensions (closed x open side) | 35x55 | ||||||
| Material thickness | 1.50 mm/ 1.60 mm | ||||||
| Installation depth | up to 1.80 meters minimum 50 cm, from 2.0 meters 1/3 of the pile length | ||||||
| Standard pole lengths | 180-270 | ||||||
| Available metals/finishes/steel grades | Strip galvanized (S250GD+Z275), zinc magnesium (S250GD+ZM310)Weatherproof steel (S235JOW C-Type) | ||||||
| Standard height of the system | 1.60 - 1.90 meters above the ground |
