Straight hook
Our secure standard solution.
Viticulture

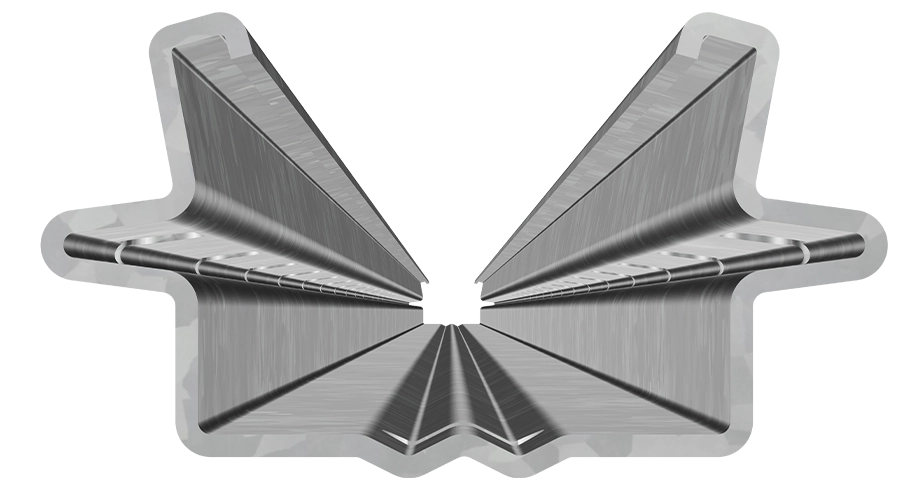

E60
Maximum stability for the highest requirements in the trellis system.
Ihre AnsprechpartnerThe E60 is the ideal solution for demanding applications and impresses with its larger profile width with particularly high stability and torsional rigidity.
The special profile shape ensures a permanently stable construction, even under high loads.
With various internal hook designs, the pole offers maximum flexibility in use. The robust hooks are suitable for fixed and interchangeable wires up to 2.2 mm and reliably withstand even intensive use.
| Dimensions (closed x open side) | 35x60 | ||||||
| Material thickness | 1.50 mm/ 1.60 mm | ||||||
| Installation depth | up to 1.80 meters minimum 50 cm, from 2.0 meters 1/3 of the pile length | ||||||
| Standard pole lengths | 180-270 | ||||||
| Available metals/finishes/steel grades | Strip galvanized (S250GD+Z275), zinc magnesium (S250GD+ZM310)Weatherproof steel (S235JOW C-Type) | ||||||
| Standard height of the system | 1.80 - 2.00 meters above the ground |
