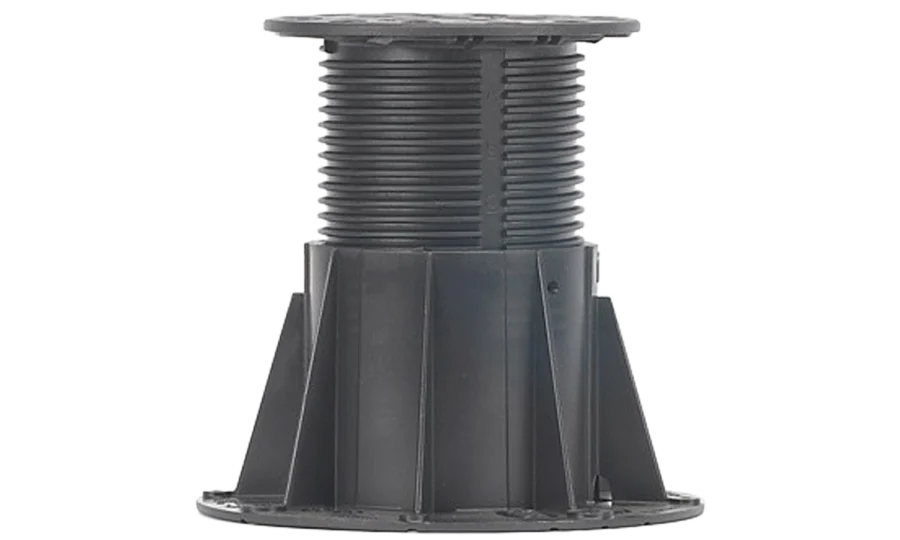

GRP adjustable leg system
MEISER BC levelling feet are made of polypropylene (PP-C) and can be used universally as a support structure and adjusted with millimetre precision.
Ihre AnsprechpartnerThe adjustable feet make it possible to create a level floor covering for a wide range of applications.
- Raised floors in industrial and commercial buildings
- Terrace and balcony construction
- Walkways in swimming pools
| Model | Adjustment range (mm) | Individual weight (kg) |
|---|---|---|
| BC1 | 14 mm solid | 0,144 |
| BC02 | 28-41 | 0,290 |
| BC2 | 42-55 | 0,310 |
| BC3 | 55-85 | 0,353 |
| BC4 | 85-140 | 0,450 |
| BC5 | 116-200 | 0,595 |
| BC6 | 200-315 | 0,785 |
| BC7 | 224-365 | 0,930 |
| BC8 | 330-531 | 1,265 |
| BC9 | 437-698 | 1,600 |
| BC10 | 545-864 | 1,935 |
| BC11 | 653-1030 | 2,270 |
| Inclination correction 5 % | + 12 mm | + 0.192 kg |
| Tilt correction 10 % | + 24 mm | + 0.384 kg |
The BC adjustable feet are height-adjustable with a screw mechanism and integrated spacers, allowing the installation of a straight floor (heights 11 mm to 1,030 mm).
MEISER adjustable feet BC are:
- seawater resistant
- Chemical resistant
- UV-resistant
- Temperature resistant /-30° to +90° C
