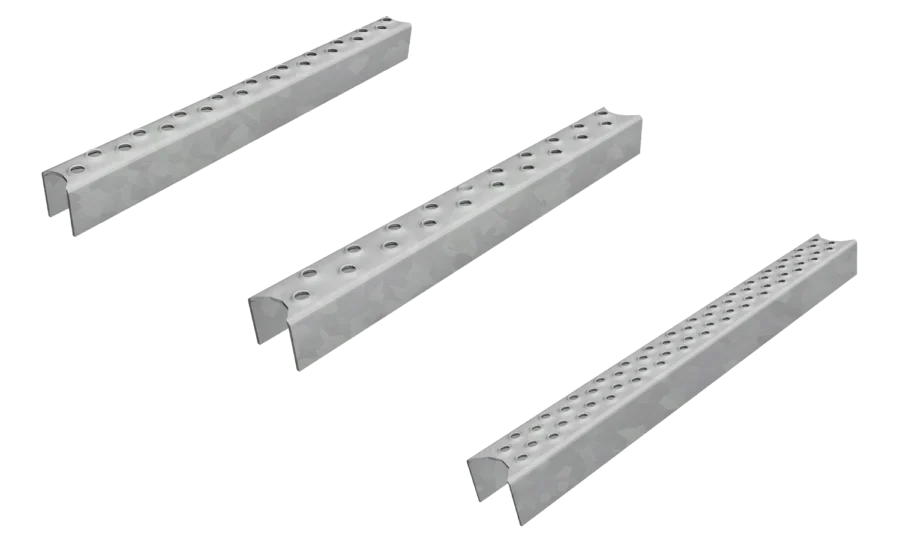

Ladder rungs
MEISER ladder rungs are characterized by their perforated and embossed surface. They guarantee a secure footing in areas where maximum slip resistance is required.
Ihre AnsprechpartnerOur large selection of different ladder rungs guarantees the ideal solution for the way up for a wide range of applications.
Occupational safety and maximum slip resistance are the most important factors here. Our ladder rungs are supplied in an untreated finish. We are happy to offer you various special designs on request.
|

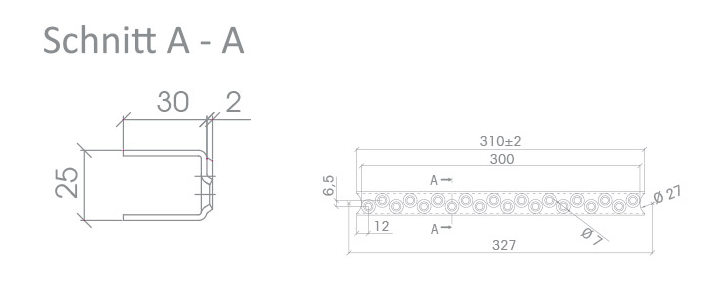

Variant 1 25 x 30 x 2
|

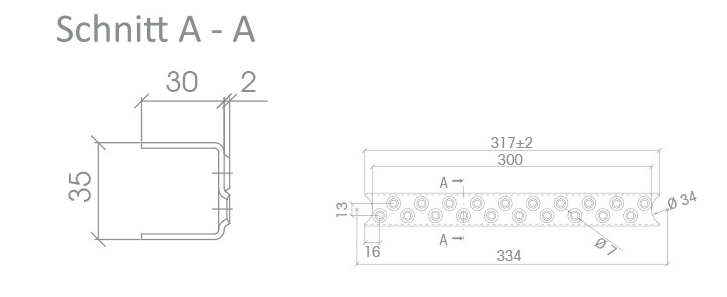

Variant 2 35 x 30 x 2
|

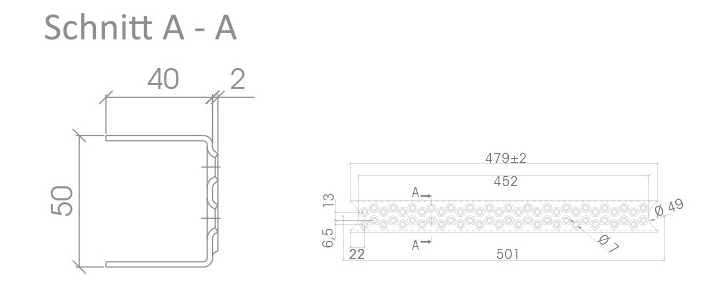

Variant 3 50 x 40 x 2
|
||||
|---|---|---|---|---|---|---|
|
Length in mm |
Weight in kg/pc. |
Length in mm |
Weight in kg/pc. |
Length in mm |
Weight in kg/pc. | |
|
Steel StW 22 | 327* | 0,40 | 334* | 0,47 | 501* | 0,96 |
| 2.000 | 2,42 | 2.000 | 2,79 | 2.000 | 3,83 | |
|
Stainless steel V2A | 327* | 0,40 | 334* | 0,47 | 501* | 0,97 |
| 2.000 | 2,43 | 2.000 | 2,81 | 2.000 | 3,86 | |
|
Aluminum AlMg3 | 327* | 0,14 | 334* | 0,16 | 501* | 0,33 |
| 2.000 | 0,83 | 2.000 | 0,96 | 2.000 | 1,32 | |
|
Stainless steel V4A 1.4404 | 2.000 | 2,40 | 2.000 | 2,81 | 2.000 | 3,86 |
| * = with notch | ||||||

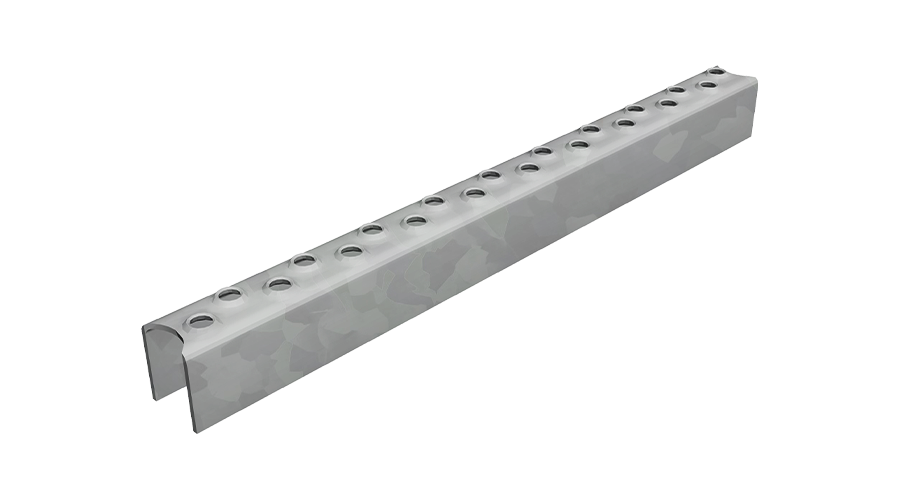

Variant 1

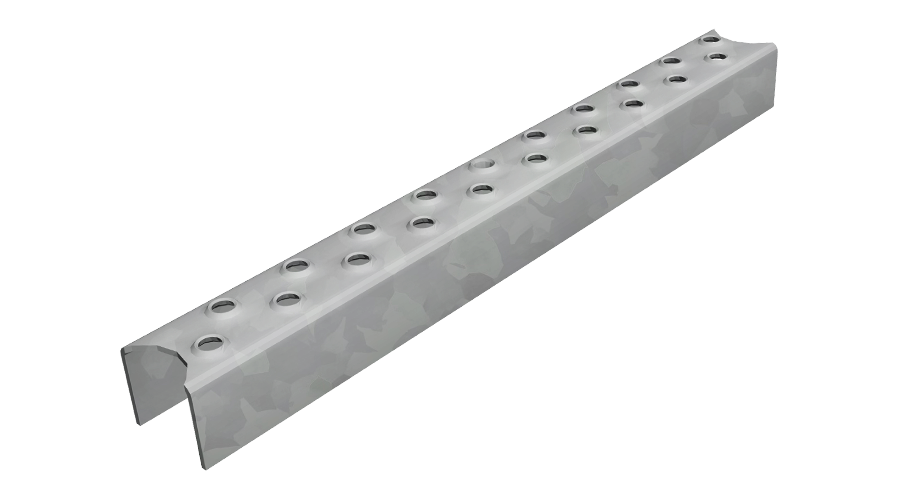

Variant 2

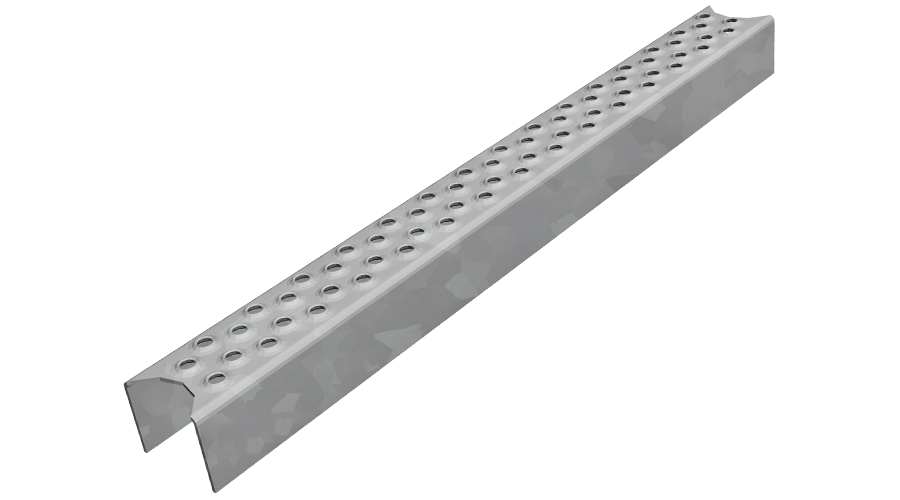

Variant 3
