Gratings

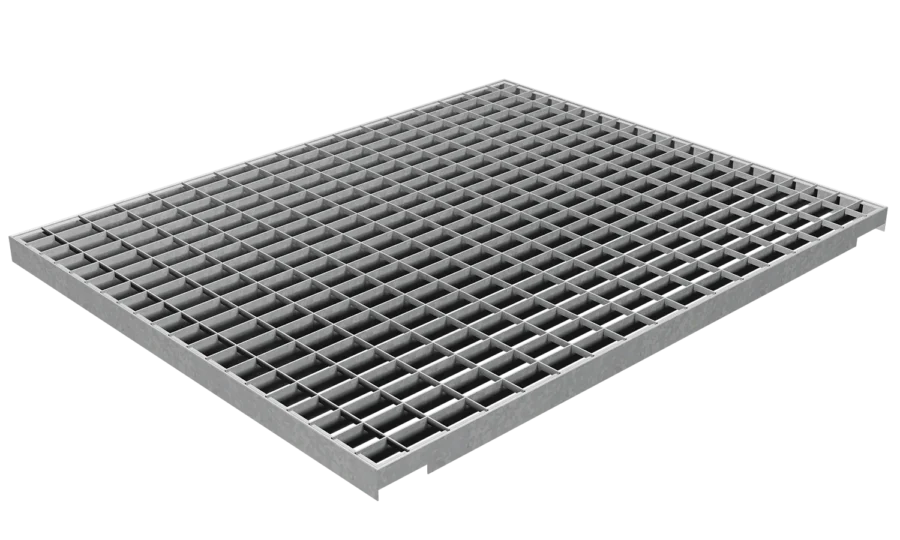

Shelf grids laid on with notched T-profile edging
This is the usual design, which is inexpensive to manufacture and suitable for different shelves with the same depth but different crossbars.
Ihre AnsprechpartnerOverlaid versions of the shelving grids enable easy locking on the crossbars of the shelving structure.
For this purpose, the T-profile edging, which is extended downwards, has a notch that is specially adapted to the width of the crossbar. The notch is made up to the height of the bearing bar, so that the bearing bars lie flush on the crossbar as a statically determining element.
Matching accessories
Attachments for Shelf grids laid on with notched T-profile edging
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.
