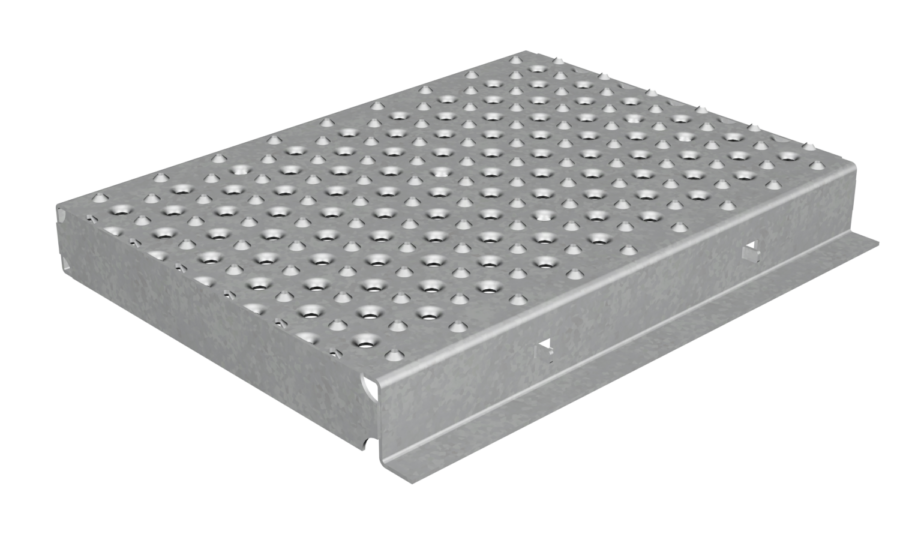

Stephuit FH
Stephuit FH flame-retardant. State-of-the-art transformer trough cover!
Ihre AnsprechpartnerThe Stephuit FH grate has been successfully tested and certified by the MFPA for its protective effect against mineral oil fires.
It is therefore specially designed for applications in sensitive and fire-prone areas, for example as a safe cover for transformer troughs or in systems with increased fire protection requirements.
Other dimensions available on request.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Hot-dip galvanized steel [DD11] | 2,0 / 2,5 / 3,0 | R11 |
| Preferred widths | 150 / 180 / 240 / 300 | |
| Preferred heights | 40 / 50 / 75 / 100 | |
| Lengths | up to 2,800 mm |
Inspection flap
Hinged service opening, available in sizes 570 x 570 mm, 800 x 800 mm and 1,000 x 1,000 mm
Inspection opening
Service opening for removal without hinge, available in sizes 570 x 570 mm, 800 x 800 mm and 1,000 x 1,000 mm
Keine weiteren Dokumente zum Download vorhanden.
The installation system
The STEPHUIT-FH guarantees quick and easy handling during installation/dismantling thanks to the special installation system using a plug-in connection/nose connection.
Earthing
Earthing lug or nut welded on or underneath
All advantages at a glance
- Simple assembly & disassembly via plug-in system
- Short failure/shutdown times of the transformers
- Faster maintenance times for drip trays, e.g. for cleaning
- Inspection openings can be integrated
- Customization possible
- Highest flame-retardant effect and drainage
