Sheet metal profile gratings

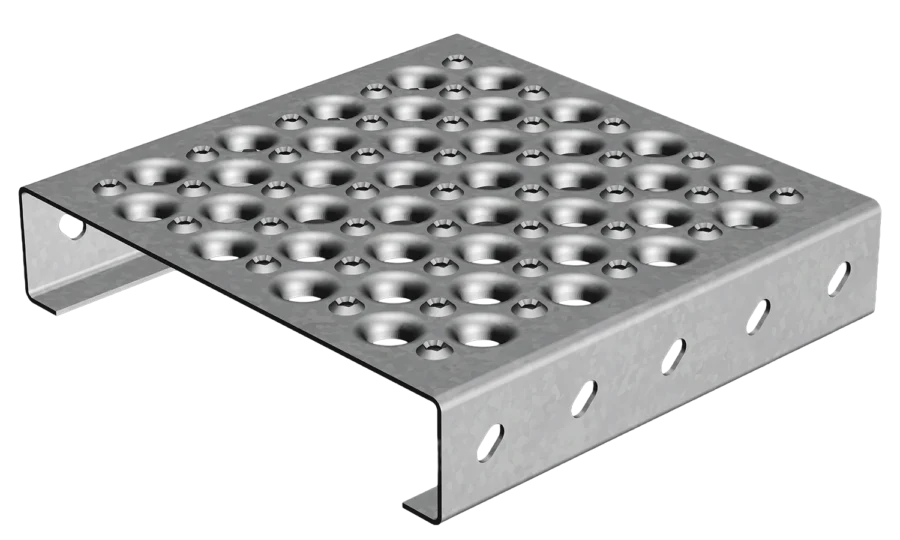

Tolmixte N
The Tolmixte N is equipped with the same features as the Stepclair N. However, the small, upward-facing holes are additionally serrated.
Ihre Ansprechpartnerplaceholder

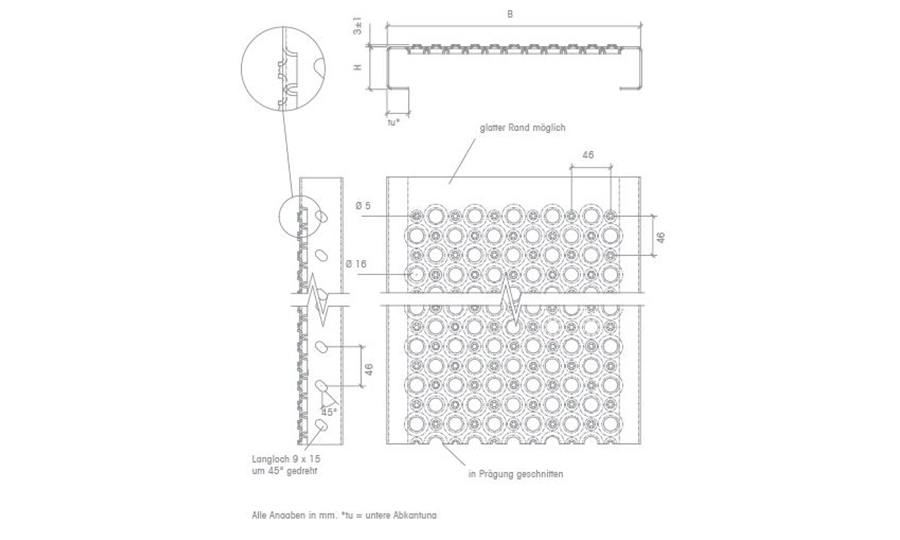

Dimensions
*Produced in France
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [1.4301] | 2,0 | |
| Preferred widths | 182 / 240 / 298 / 330 | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Keine weiteren Dokumente zum Download vorhanden.
Matching accessories
Attachments for Tolmixte N
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR cast metal washer with countersunk hole
Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.
BPR plastic grommet with countersunk hole
Mounting top for all Stepclair and Airstep shapes.
BPR hook fastening
With countersunk head screw; hook pressed with sleeve.
BPR quick fastening
Clamp connection with countersunk head screw M8.
BPR flange
Clamp connection with cage nut and countersunk head screw M8.
