Sheet metal profile gratings

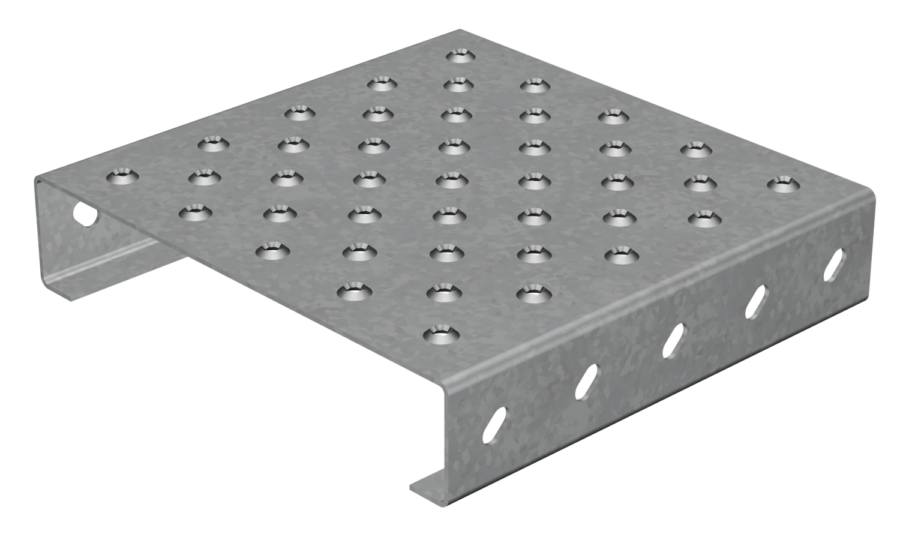

Tolpicot N
The Tolpicot N has the same properties as the Aderstep N, but this type of grating has additional serrations
Ihre Ansprechpartnerplaceholder

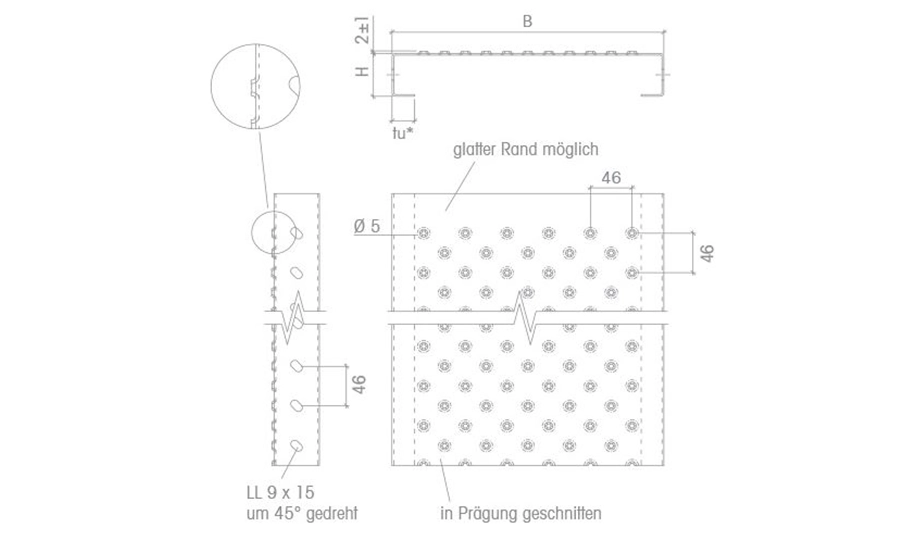

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Produced in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [AISI 304L] | 2,0 | R12 |
| Preferred widths | 180 / 240 / 300 / 330 / 360 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
