Gratings

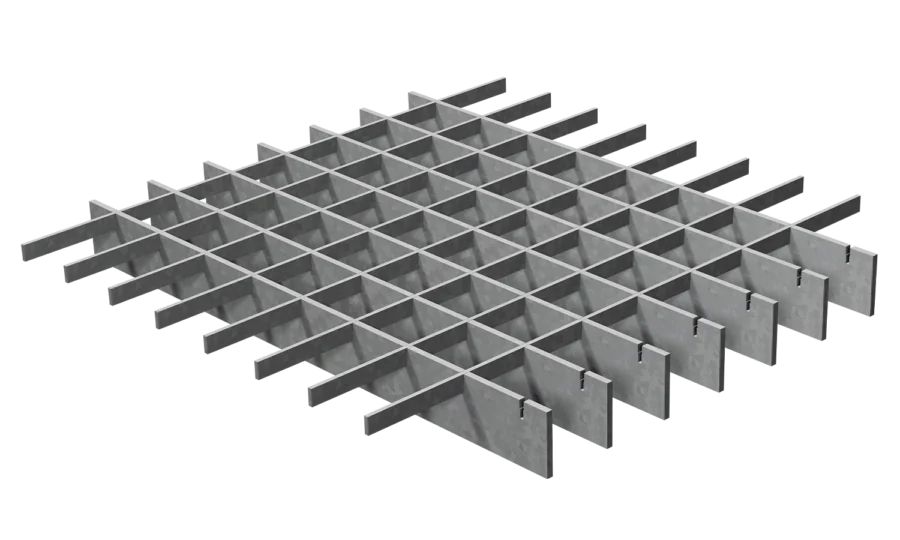

Ultrarosts
MEISER developed the Ultrarost many years ago to offer cutting companies an alternative to the classic SP mat in a press-locked grating design.
Ihre AnsprechpartnerA specially developed joining technique guarantees a firm connection between the bearing and filler bars. This can even be supplemented with spot welding on request.
The Ultra mat is therefore ideal for further processing, as loosening of the filler bars during installation is virtually impossible. The Ultra mat is also available in filler rod lengths of up to 1,500 mm, which means that there is significantly less waste compared to SP mats. The Ultra mesh is always trimmed and is available in our stock range in various mesh pitches and sizes. The filler rod side can also be edged on request.
Common mesh divisions
| Support rod | Filler rod | ||
|---|---|---|---|
| 33,3 | 33,3 | 66,6 | 99,9 |
| 66,6 | 33,3 | 66,6 | 99,9 |
Standard bearing bar profiles
| Support rod 2 mm | Filler rod 3 mm |
|---|---|
| 25/5 | 25/3 |
| 30/2 | 30/3 |
| 35/2 | 35/3 |
| 40/2 | 40/3 |
Matching accessories
Attachments for Ultrarosts
Terminal B10
Consisting of upper part of bracket, hexagon socket screw, lower part of bracket and nut.
Clamp S
Consists of flat-head screw, clamp base and square nut.
Grille setting bolt fastening
Consisting of bolt and plate.
Grating butt connectors
Consisting of upper part and lower part with thread and hexagon socket screw.
Safety terminal A
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Double terminal B
Consists of 2 upper bracket parts, lower clamp part, 2 hexagon bolts and 2 square nuts.
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.
Safety terminal D
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
